Industrial Syphons, Gauge Thermal Protection Syphons.

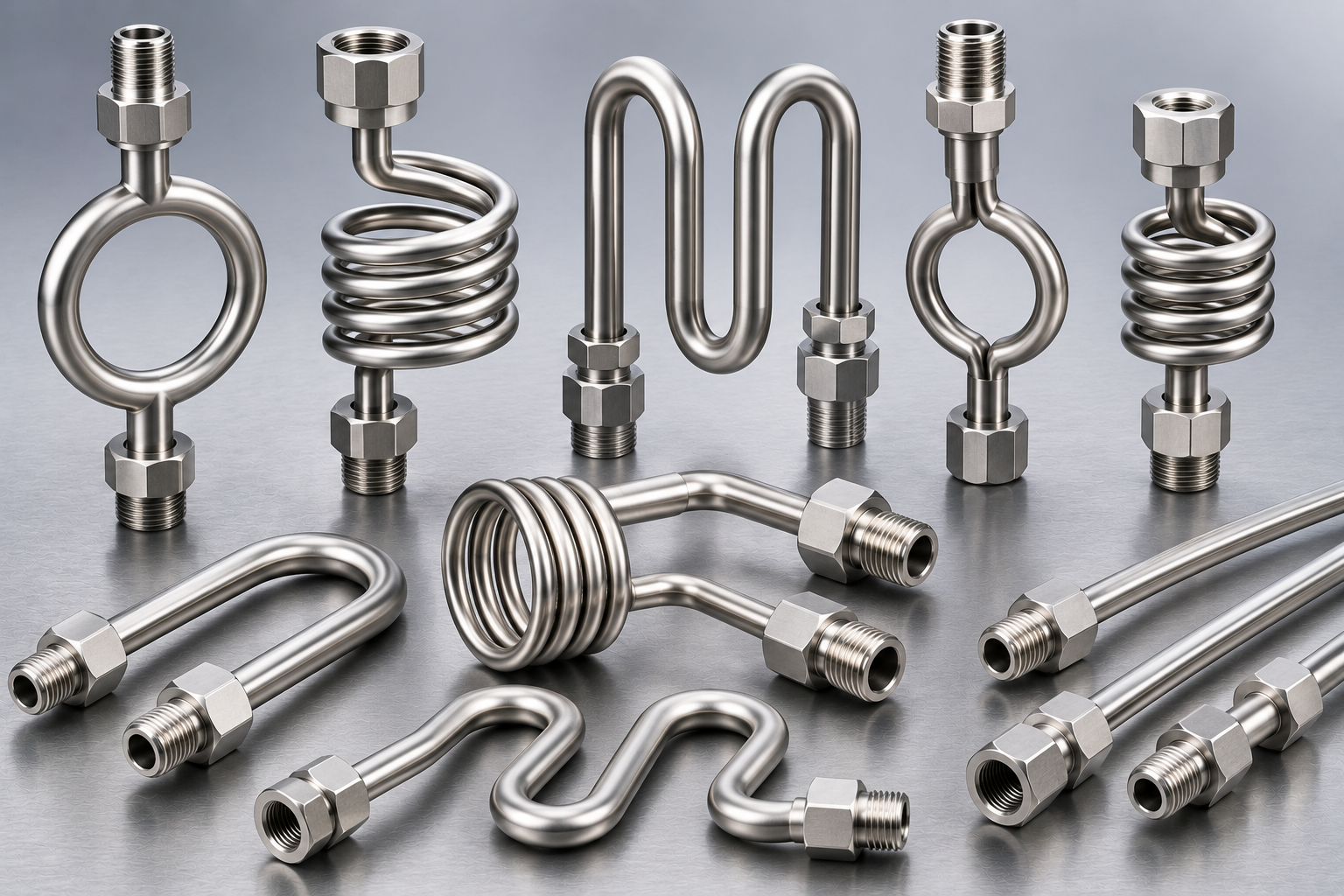

Elite Steels Inc. manufactures stainless steel and carbon steel pressure gauge syphons (Pigtail, Coil, U-Type, Q-Type) engineered to protect pressure instruments from high-temperature live steam and aggressive media.
Engineered for High-Pressure & Corrosion Critical Service.
13. Syphon from Elite Steels Inc. are manufactured under strict ISO 9001:2015 quality controls. Engineered from certified high-purity alloys, each item offers flawless dimensional accuracy, superior mechanical strength, and long service life in challenging environments.
Trusted across oil & gas refineries, power plants, chemical process industries, offshore platforms, and heavy industrial engineering projects globally.
Technical Snapshot
- Inlet / Outlet Sizes 1/4", 3/8", 1/2", 3/4", 1" NPT / BSP male & female
- Types Coil / Pigtail Syphon, U-Type Syphon, Q-Type Syphon, Compact Ring
- Schedules Schedule 40, Schedule 80, Schedule 160, XXS
- Material Grades SS 304, 304L, 316, 316L, Carbon Steel A105, Alloy Steel P11
- Pressure Rating Up to 160 Bar at 400°C
- Applications Boiler Steam Drums, Pressure Transmitters, Chemical Reactors
Nine Alloy Families, Complete Traceability.
Explore our extensive alloy inventory for 1. Buttweld Fittings. Every product is supplied with complete raw material mill test reports to EN 10204 3.1.
01 / 09
Stainless & Duplex Steel
02 / 09
Carbon & Alloy Steel
03 / 09
Nickel & Copper Alloy
04 / 09
Hastelloy Alloys
05 / 09
Inconel Alloys
06 / 09
Incoloy Alloys
07 / 09
Monel Alloys
08 / 09
Titanium Alloys
09 / 09
Custom Fabrications
Available Types & Configurations in Stock.
Filter or click below to view configurations available for immediate dispatch.
Industrial Pressure Gauge Syphon Pipe Technical Data
Standard dimensional specifications reference chart according to ASME / ASTM engineering codes.
| Connection Size | Syphon Style | Pipe Schedule | Max Temp (°C) | Max Pressure (Bar) | Material Grade |
|---|---|---|---|---|---|
| 1/4" NPT Male x Female | Pigtail Coil | SCH 40 Seamless | 350°C | 100 Bar | SS 316L |
| 1/2" NPT Male x Female | Pigtail Coil | SCH 80 Seamless | 400°C | 160 Bar | SS 316L |
| 1/2" NPT Male x Male | U-Type Vertical | SCH 80 Seamless | 400°C | 160 Bar | SS 316L |
| 1/2" BSP Male x Female | Q-Type Horizontal | SCH 80 Seamless | 400°C | 160 Bar | SS 316L |
| 1/2" NPT Male x Female | Coil Syphon | SCH 160 Seamless | 450°C | 250 Bar | ASTM A105 |
| 3/4" NPT Male x Female | U-Type Vertical | SCH 80 Seamless | 400°C | 160 Bar | SS 304 |
Three Decades of Manufacturing & Supply Excellence.
100% Traceability
Every order is supplied with authentic Mill Test Certificates (MTC) to EN 10204 3.1, NACE MR0175, and 100% PMI testing.
Precision CNC Machining
High-precision machining, smooth surface finish, and exact tolerances for effortless field installation.
Extensive Ready Stock
Largest ready inventory of standard stainless, carbon, alloy, and nickel components for urgent requirements.
Global Logistics
Swift PAN India dispatch and international export packaging compliant with ISPM-15 seaworthy standards.
